Automatic Vacuum Packing Machine DZ-400/ZT

MODEL POWER SUPPLY MOTOR POWER HEAT SEALING POWER DZ400/ZT 220V/50

Brand: KUNBA

Model: DZ-400/ZT

FOB Port: Ningbo/Shanghai

Terms of Payment: T/T

Update: 11/30/2017

Request Quotation >>>
Product Description

 Automatic vacuum packaging machine

Supply Voltage AC220V/50Hz 110V/60HZ
Motor Power 0.9Kw
Heat Sealing Power 0.4Kw/0.7Kw
Vacuum Ultimate Pressure ≤1hPa(mbar)
Vacuum Pump Pumping Rate 20m³/h
Heat Seallength 390mm
Heat Sealwidth 10mm
Vacuum Chamber Depth 65mm
Outer Packing Size 615×565×620mm
Net/Gross Weight 65Kg/75.5Kg



KUNBA DZ400/ZT series single chamber vacuum packing machine
                     Product selling point

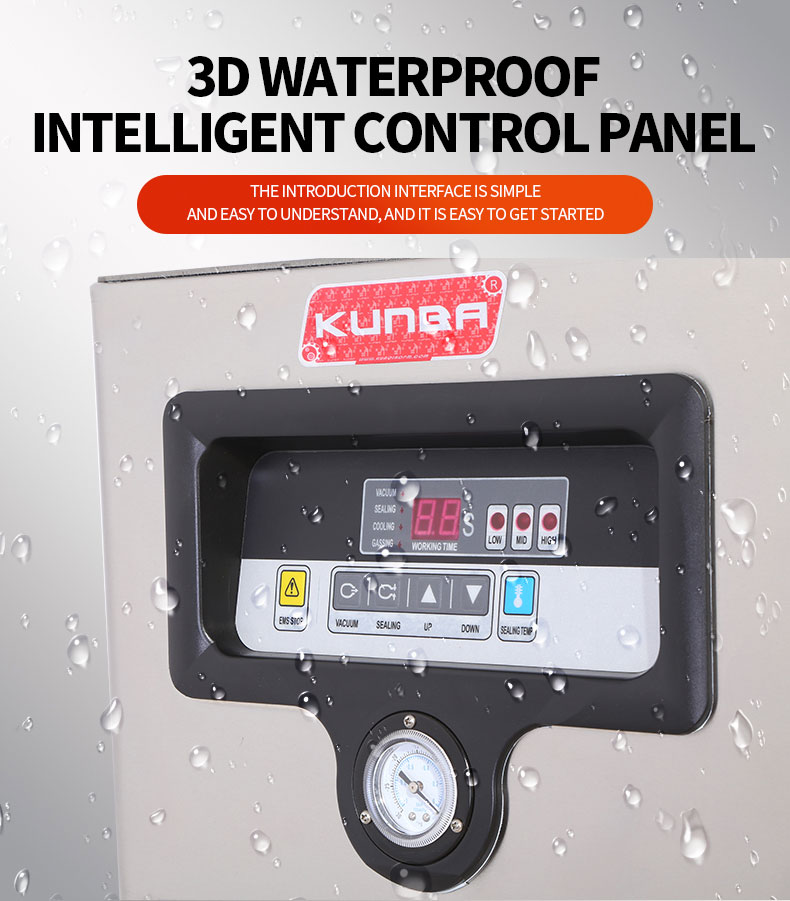

Control panel

Multi-language

User-friendly

Durable electric units

OEM customizable

Vacuum chamber

3mm thickness

304 stainless steel

Formed by mould

Easy for clean

Plexiglass lid

Hings absorb shocks

Long life

Easy for clean
food vacuum packing machine

Featured housing

not easily deform

seamless

safty for operator

Product structure diagram

Contrast with other brand of vacuum packing machines

Product Operating Procedures







Parameter Comparison
Model DZ400/ZT Model DZ450/ZT Model DZ500/ZT
ultimate vacuum 0.1hpa ultimate vacuum 0.1hpa ultimate vacuum 0.1hpa
vacuum chamber depth 65mm vacuum chamber depth 65mm vacuum chamber depth 70mm
power supply 220V/50HZ  110V/60HZ power supply AC220V/50HZ  110V/60HZ power supply AC220V/50HZ  110V/60HZ
pump capacity 20m3/h pump capacity 20m3/h pump capacity 20m3/h
machine size 540*490*500mm machine size - machine size 540*490*500mm
motor powerheat sealing power 0.9KW motor powerheat sealing power 0.6KW motor powerheat sealing power 0.8KW
sealing length 390mm sealing length 440mm sealing length 490mm
shipment dimension 640*590*630mm shipment dimension 670*660*615mm shipment dimension 750*700*615mm
Heat sealing power 0.6KW Heat sealing power 0.6KW Heat sealing power 0.8KW
sealing width 10MM sealing width 10MM sealing width 10MM
N.W./G.W 62.5kg/77.5kg N.W./G.W 70kg/83kg N.W./G.W 77kg/90kg
